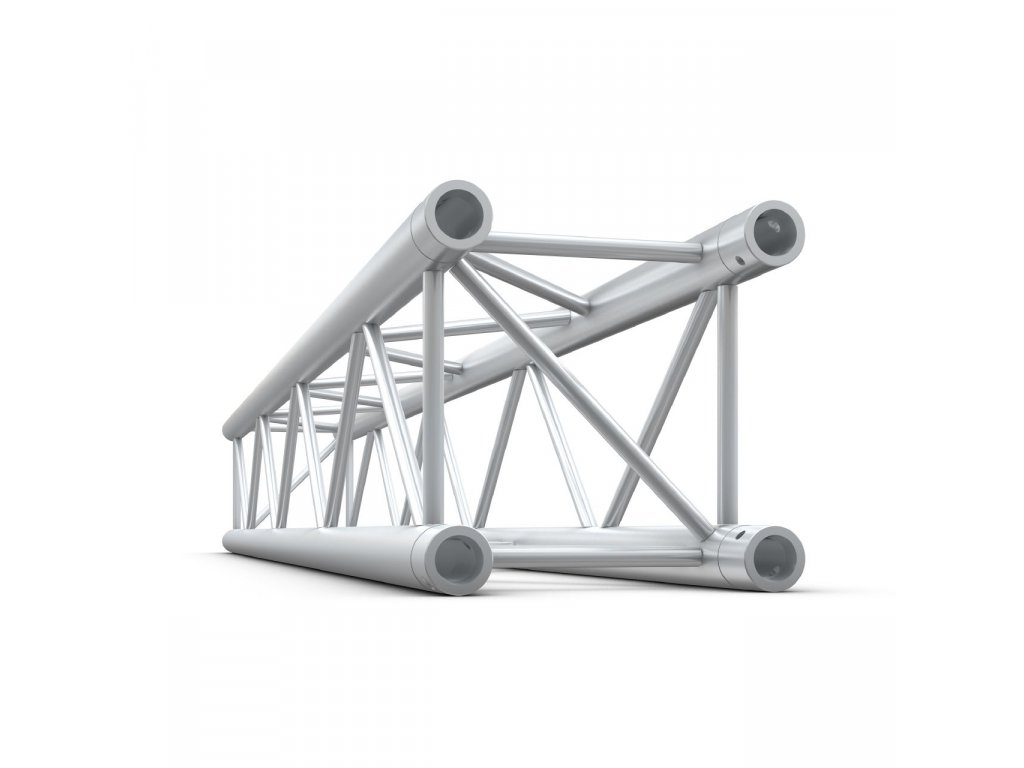

M290B QUATRO straight part

Product detailed description

Thanks to its low weight, high variability and easy installation, it finds application in various uses, whether in theaters, music clubs, lecture halls, exhibition spaces, at concerts, during the construction of stages, etc.

• Designation: QTB
• load capacity 1704 kg
• span up to 16 m
• compatible with 200 / 400 / 500 / 600 series clamps
• the possibility of another color according to the RAL swatch
• material: aluminum alloy EN - AW 6082 T6
• pipe diameter: 50 mm
• tube thickness: 2 mm
• diameter of braces: 16 mm
• thickness of reinforcements: 2 mm
• standard supplied lengths: 0.5 m; 1 m; 1.5 m; 2 m; 3 m; 4 m; 5 m.
• we deliver including connection pins

M290 Straight Parts - Technical Specification (1,009.14 KB)
